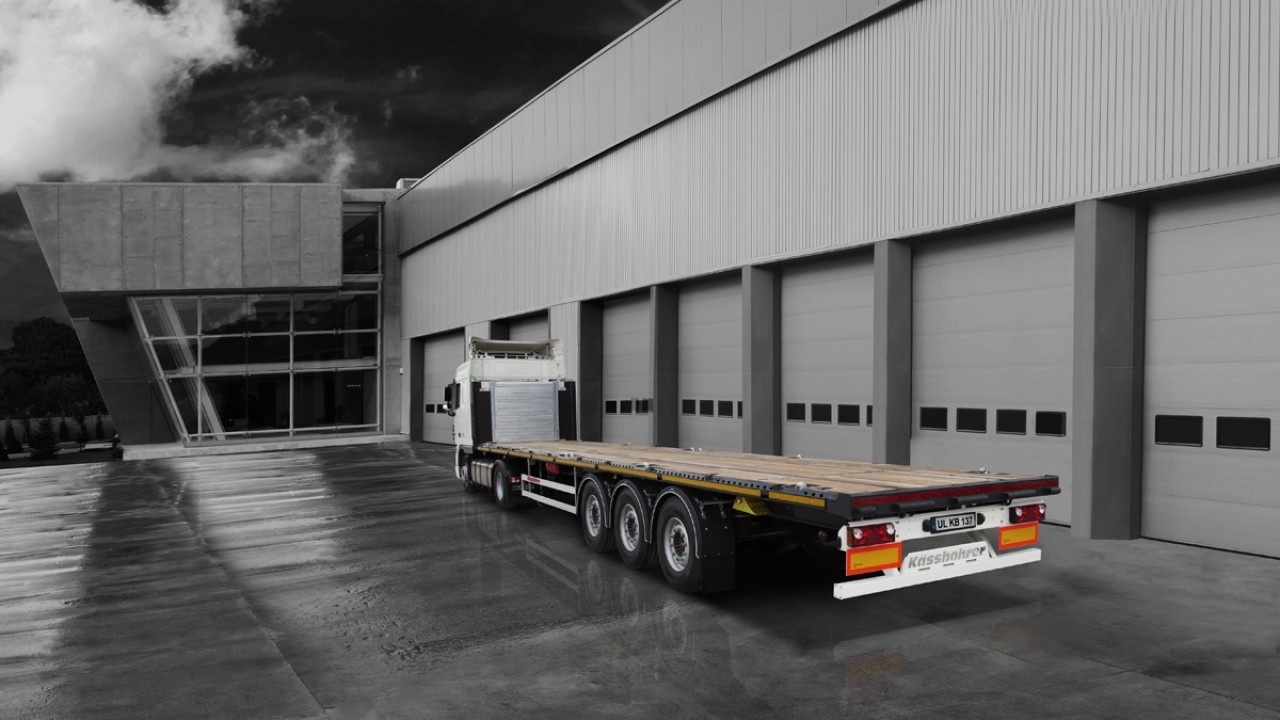

Kässbohrer standartinės platformos serija padės gerokai optimizuoti jūsų operacijas, kadangi dėl lengvos, bet tvirtos važiuoklės konstrukcijos turėsite maksimalų apkrovimą.
Kataforezės būdu padengta važiuoklė garantuoja aukščiausios kokybės rezultatus per visą platforminių puspriekabių eksploatacijos laikotarpį; Kässbohrer puspriekabės – platformos gali būti sukonfigūruotos su angomis statramsčiams tvirtinti ir krovinio tvirtinimo žiedais pagal EN 12640 standartą didesniam krovinių saugumui užtikrinti.
Siekiant dar labiau padidinti funkcionalumą, standartinėse platformose taip pat gali būti sumontuotos nuimamos kraštinės sienelės, 30 mm storio kietmedžio grindys arba užraktai konteineriams transportuoti.

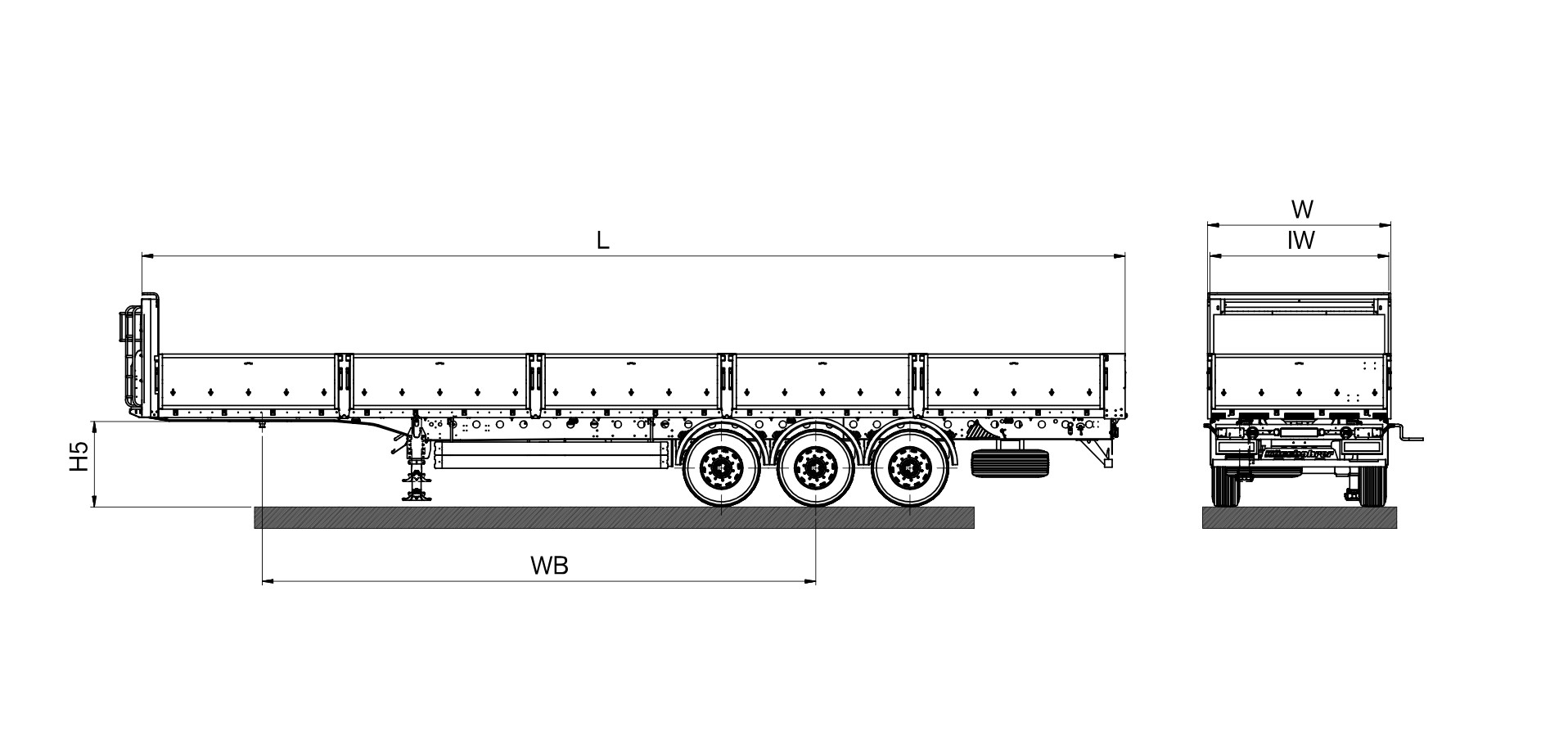

| TECHNICAL DATA | |
Fifth Wheel Height (H5) |
1.180 mm |
Gooseneck (NH) |
200 mm |
Wheelbase (WB) |
7.700 mm |
External Length (L) |
13.670 mm |
Tare Weight ±%3 |
5.950 kg |
| TECHNICAL INFORMATION | |
Chassis |
Made of high quality and high strength ST52 steel, in compliance with Standard ISO 1726-2 ; made of two welded longitudinal beams in "I" form with cross beams at needed distances. Reinforced with KTL protection with Kässbohrer expertise (10 years warranty for perforation) |
Brake System |
Dual circuit electro-pneumatic WABCO brand EBS 2S/2M brake system with anti-lock (ABS) and tilt control system (RSS) in compliance w ith Regulation UN ECE R13 |
Tyre Size |
385/65 R 22.5 |
Axles |
3 x 9 tons capacity Kaessbohrer disc brake axles |
Electric System |
ASPÖCK Europoint III lightning installation with 24V LED side position lamp and 2 x 7 and 1 x 15 pin sockets, in compliance with Regulation UN ECE R48 and ADR Legislation |
Floor |
Phenol resin coated, 30mm thick and water resistant plywood flooring that can support 5.460 kg forklift axle load in compliance with DIN EN 283 |
Lashing Rings |
2 x 13 units of load lashing rings each with 2.5 tons capacity on the side rave in compliance with standard EN 12640 |
Front Panel Type |
KTL coated steel panel and 1.500 mm plywood protection plate |
Pillars and Pockets |
Vertical plug-in pillar not available |
| TECHNICAL CAPACITIES | |
King Pin Capacity |
12.000 kg |
Axle Load |
27.000 kg |
Gross Weight |
39.000 kg |
| TECHNICAL DATA | |
Fifth Wheel Height (H5) |
1.180 mm |
Gooseneck (NH) |
200 mm |
Wheelbase (WB) |
7.700 mm |
External Length (L) |
13.640 mm |
Tare Weight ±%3 |
5.865 kg |
| TECHNICAL INFORMATION | |
Chassis |
Made of high quality and high strength S700 MC steel, in compliance with Standard ISO 1726; made of two welded longitudinal beams in "I" form with cross beams at needed distances. Reinforced with KTL protection with Kässbohrer expertise (10 years warranty for perforation) |
Brake System |
Dual circuit electro-pneumatic Wabco brand EBS 2S/2M brake system with anti- lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13 |
Tyre Size |
385/65 R 22.5 |
Axles |
BPW air suspension and disc brake axle with 3x9 ton capacity |
Electric System |
ASPÖCK Europoint III lightning installation with 24V LED side position lamp and 2 x 7 and 1 x 15 pin sockets, in compliance with Regulation UN ECE R48 and ADR Legislation |
Floor |
Hardwood coated, 30 mm thick and water resistant Hardwood flooring that can support 7.200 kg forklift axle load in compliance with DIN EN 283 |
Container Locks |
Equipped with 6 x 2 container locks suitable for carrying 1 x 20 ft. in the middle, 2 x 20 ft., 1 x 40 ft. ISO tunneled and 1 x 40 ft. high cube containers |
K-Fix |
K-Fix has 96 holes per side rave which increases load lashing variaties. Each load strapping point has a load capacity of 2.5 |
Front Panel Type |
KTL coated steel front panel with protection of steel sheet inside with 1,500 mm height. Specialized with a storage for protection of tarpaulin and working ladder |
Pillars and Pockets |
10 x 2 units 83 x 83 mm pillar pockets on side rave + 4 rows of 18 units 83 mm x 83 mm pillar pockets on the floor |
| TECHNICAL CAPACITIES | |
King Pin Capacity |
12.000 kg |
Axle Load |
27.000 kg |
Gross Weight |
39.000 kg |

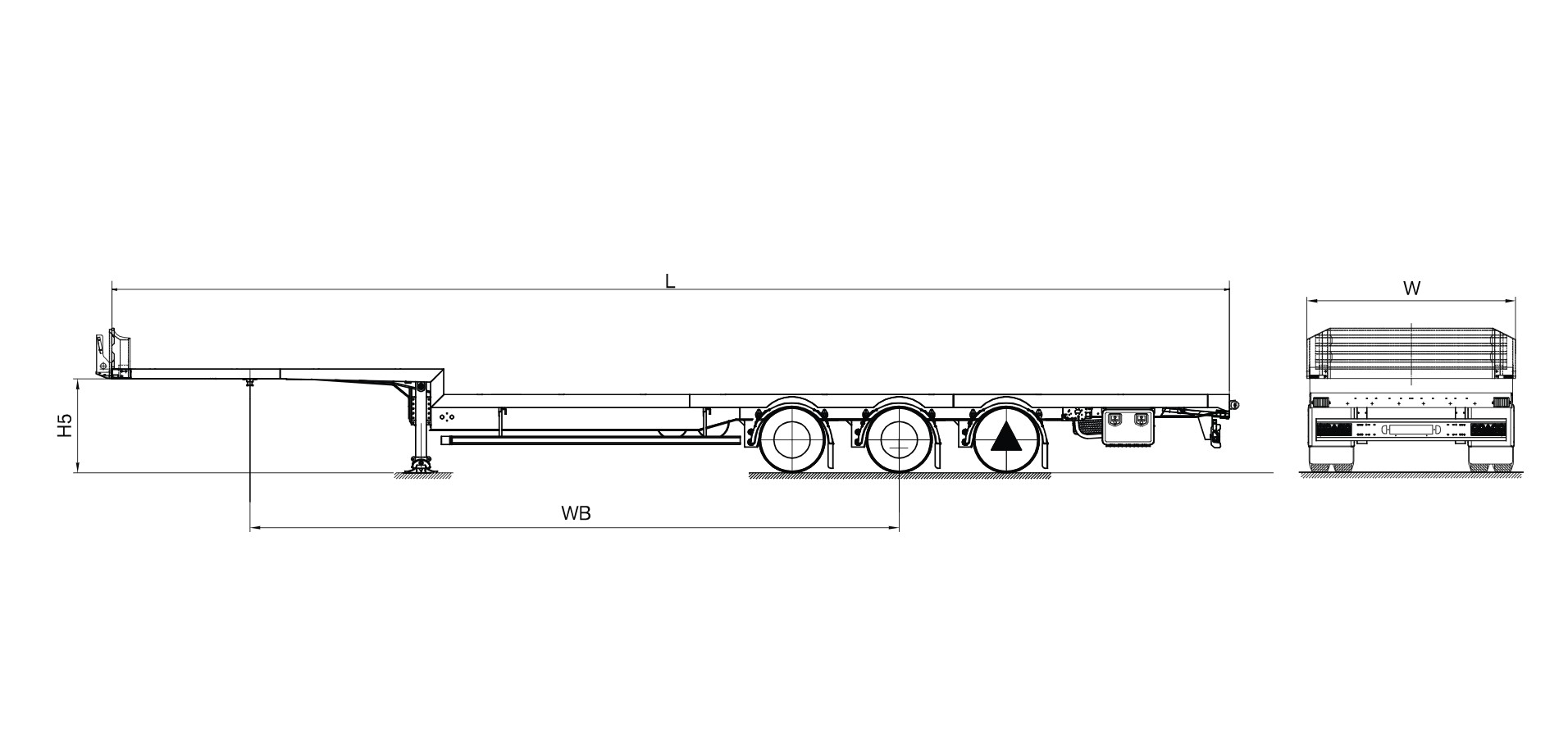

| TECHNICAL DATA | |
Fifth Wheel Height (H5) |
1.150 mm |
Gooseneck (NH) |
120 mm |
Wheelbase (WB) |
7.940 mm |
External Length (L) |
13.665 mm |
Tare Weight ±%3 |
5.620 kg |
| TECHNICAL INFORMATION | |
Chassis |
Made of high quality and high strength ST52 steel, in compliance with Standard ISO 1726-2 ; made of two welded longitudinal beams in "I" form with cross beams at needed distances. Reinforced with KTL protection with Kässbohrer expertise (10 years warranty for perforation) |
Brake System |
Dual circuit electro-pneumatic WABCO brand EBS 2S/2M brake system with anti- lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13 |
Tyre Size |
235/75 R 17.5 |
Axles |
BPW air suspension and drum brake axle with 3x9 ton capacity |
Electric System |
ASPÖCK Europoint III lightning installation with 24V LED side position lamp and 2 x 7 and 1 x 15 pin sockets, in compliance with Reg ulation UN ECE R48 and ADR Legislation |
Floor |
Phenol resin coated, 30 mm thick and water resistant plywood flooring that can support 5.400 kg forklift axle load in compliance with DIN EN 283 |
Front Panel Type |
500 mm steel front panel |
| TECHNICAL CAPACITIES | |
King Pin Capacity |
12.000 kg |
Axle Load |
27.000 kg |
